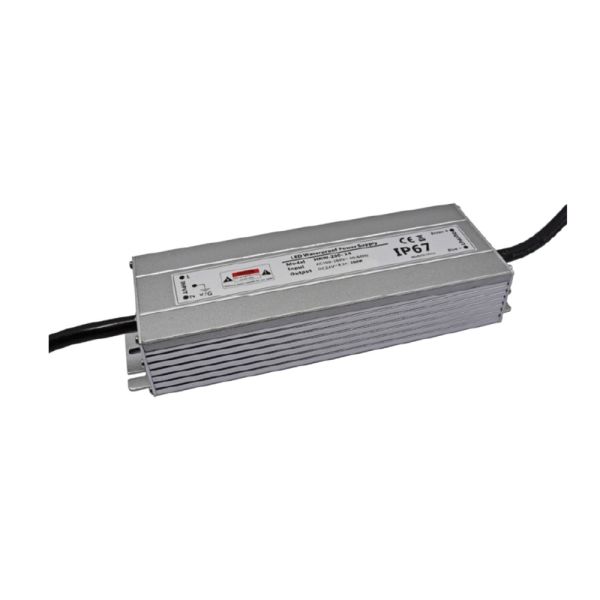

POWER SUPPLY IP67 200W 24V 170-264VAC
Είσοδος για εμφάνιση τιμών
Άμεσα Διαθέσιμο
Σε απόθεμα
Χαρακτηριστικά:
- 170~264VAC input,
- Protection: Short circuit/overload/over voltage,
- Miniature size and 1U low profile,
- Working temperature with 60℃,
- Cooling by free air convection,
- 100% full load burn-in test,
- IP67 waterproof,
- 3 years warranty
OUTPUT: DC Voltage 24V Voltage Tolerance: ±0.5V Rated Current: 0 - 8.3ARated Power:200W Ripple & Noise:250mVp-p INPUT:Voltage Range:170-264VAC Frequency Range:50 -60HZ Power Factor:PF 0.6/220VAC（Full loading）Full Load Efficiency(Typ.):86% AC Current (Max.):1.83A Leakage current:<0.75mmA/260VAC Inrush current:<60A Protection:Short Circuit:Protection type: Hiccup mode, recovers automatically after fault condition is removed.Over Load:Hiccup mode, recovers automatically after fault condition is removed VIBRATION:10-500Hz 5G12min BURNT-IN TEST:Input voltage：220V 50Hz rated output current 25°C Bum-in 2h Dimension :218x73x42mm（LxWxH）
Περισσότερες Πληροφορίες | Κατηγορία | HRW IP67 |
|---|
