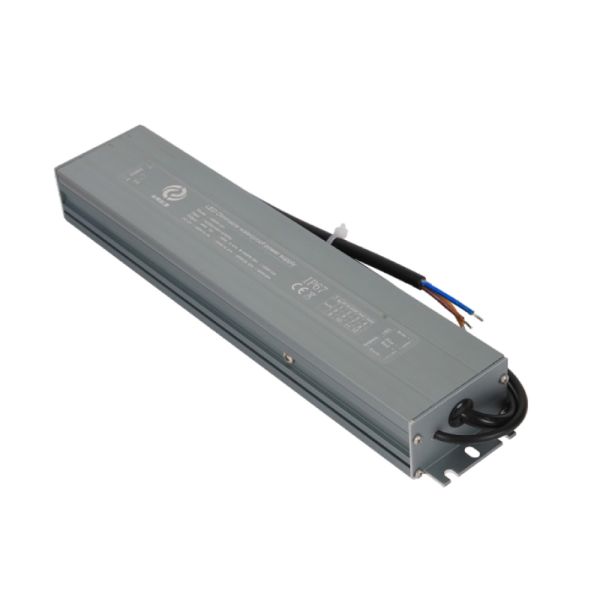

POWER SUPPLY IP67 24V 200W TRIAC & 0/1-10V DIMMABLE
Είσοδος για εμφάνιση τιμών
Άμεσα Διαθέσιμο
Σε απόθεμα
Χαρακτηριστικά:
- 170-264VAC
- Protection: Short circuit/overload/over voltage
- Working temperature with 6O°C
- Cooling by free air convection
- 100% full load burn-in test
- 3 years warranty
- Support : TRIAC , Leading edge , Forward phase ,
Trailing edge, Reverse phase ,0/1-10V dimmable
OUTPUT: DC Voltage 24V Voltage Tolerance: ±0.5V Rated Current: 0 - 8.3A Rated Power:200W Ripple & Noise:200mVp-p INPUT:Voltage Range: 170-264VAC Frequency Range:50 -60HZ Power Factor:PF 0.5/230VAC（Full loading）Full Load Efficiency(Typ.):86% AC Current (Max.):1.6A Leakage current:<0.5mmA/260VAC Inrush current:<60A Protection:Short Circuit:Protection type: Hiccup mode, recovers automatically after fault condition is removed.Over Load:Hiccup mode, recovers automatically after fault condition is removed VIBRATION:10-500Hz 5G12min BURNT-IN TEST:Input voltage：220V 50Hz rated output current 25°C Bum-in 2h Dimension :305x51x30mm（LxWxH）
Περισσότερες Πληροφορίες | Κατηγορία | TRIAC&0/1-10VDimmable IP67 |
|---|
